Plot twilight calibration diagnostics

This function plots the stacked calibration histogram and fitted density. If a path is provided, it instead plots the solar zenith angle histogram derived from tag$twilight and the path, with the calibration density overlaid.

Usage

plot_twl_calib(x, path = NULL, warning_ci = 0.95, plot_plotly = TRUE, ...)

plot_twl_calib_path(tag, path, warning_ci = 0.9973, plot_plotly = TRUE)

Arguments

x

a GeoPressureR twl_calib object or a tag object with calibration.

path

a GeoPressureR path or pressurepath data.frame. If provided, plot the path-based calibration diagnostic instead of the stacked calibration histogram.

warning_ci

Width of the symmetric confidence interval used to flag staps with twilights outside the calibrated range (e.g., 0.95 for 2.5%/97.5%).

plot_plotly

logical to use plotly.

...

unused

tag

a GeoPressureR tag object with twilight calibration (used by plot_twl_calib_path()).

Value

a ggplot or ggplotly object

See also

Other geolight: geolight_fit_location(), geolight_map(), geolight_solar(), twilight_create(), twilight_label_read(), twilight_label_write()

Examples

withr::with_dir(system.file("extdata", package = "GeoPressureR"), {
  tag <- tag_create("18LX", quiet = TRUE) |>
    tag_label(quiet = TRUE) |>
    tag_set_map(
      extent = c(-16, 23, 0, 50),
      scale = 5,
      known = data.frame(
        stap_id = 1,
        known_lon = 17.05,
        known_lat = 48.9
      )
    ) |>
    twilight_create() |>
    twilight_label_read() |>
    geolight_map_calibrate()
})
#> ℹ Calibrate zenith angle
#> ✔ Calibrate zenith angle [8ms]
#>

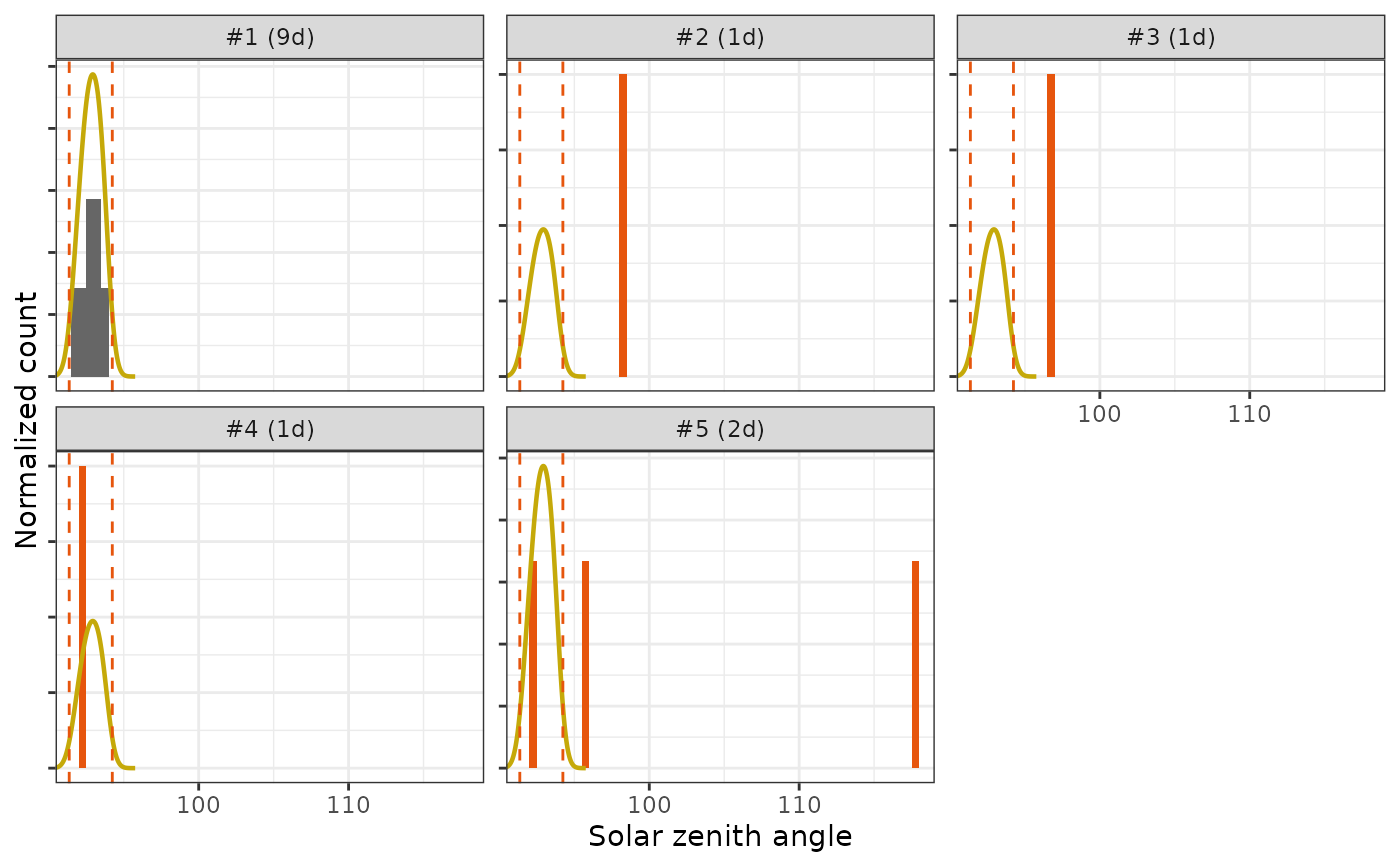

# Histogram + kernel density
plot_twl_calib(tag)


# With fitted location duration of 5 days minimum
tag <- geolight_map_calibrate(tag, fitted_location_duration = 5)
#> ℹ Calibrate zenith angle
#> ✔ Calibrate zenith angle [8ms]
#>

# Path-based diagnostic (uses tag$twilight)
path <- tag$stap[, c("stap_id", "start", "end")]
path$lon <- ifelse(is.na(tag$stap$known_lon), 0, tag$stap$known_lon)
path$lat <- ifelse(is.na(tag$stap$known_lat), 0, tag$stap$known_lat)
plot_twl_calib(tag, path = path, plot_plotly = FALSE)
#> Warning: ✖ Some twilight calibration angles in stap 2 fall outside the hard bounds (60,
#>   120).
#> → These values will be ignored for calibration.
#> Warning: ✖ Some twilight calibration angles in stap 3 fall outside the hard bounds (60,
#>   120).
#> → These values will be ignored for calibration.
#> Warning: ✖ Some twilight calibration angles in stap 4 fall outside the hard bounds (60,
#>   120).
#> → These values will be ignored for calibration.
#> Warning: ✖ Some twilight calibration angles in stap 5 fall outside the hard bounds (60,
#>   120).
#> → These values will be ignored for calibration.
